SPECIFICATIONS

Application: Desktop,Laptop,Number,Tablet

Axis Body Brand: EPOMAKER

Backlight Type: MULTICOLOR

Battery Included: Yes

EPOMAKER Model: TH80 V2 PRO

Full Size keyboard: No

High-concerned chemical: None

Interface Type: USB

Keyboard Standard: 78 Keys

Keycup material: PBT plastic

Keycup printing: Doublshot

Language: English

Operation Style: Mechanical

Package: Yes

Style: Standard

Switches Hot swap: Yes

Type: 2.4Ghz Wireless

Wrist Support: No

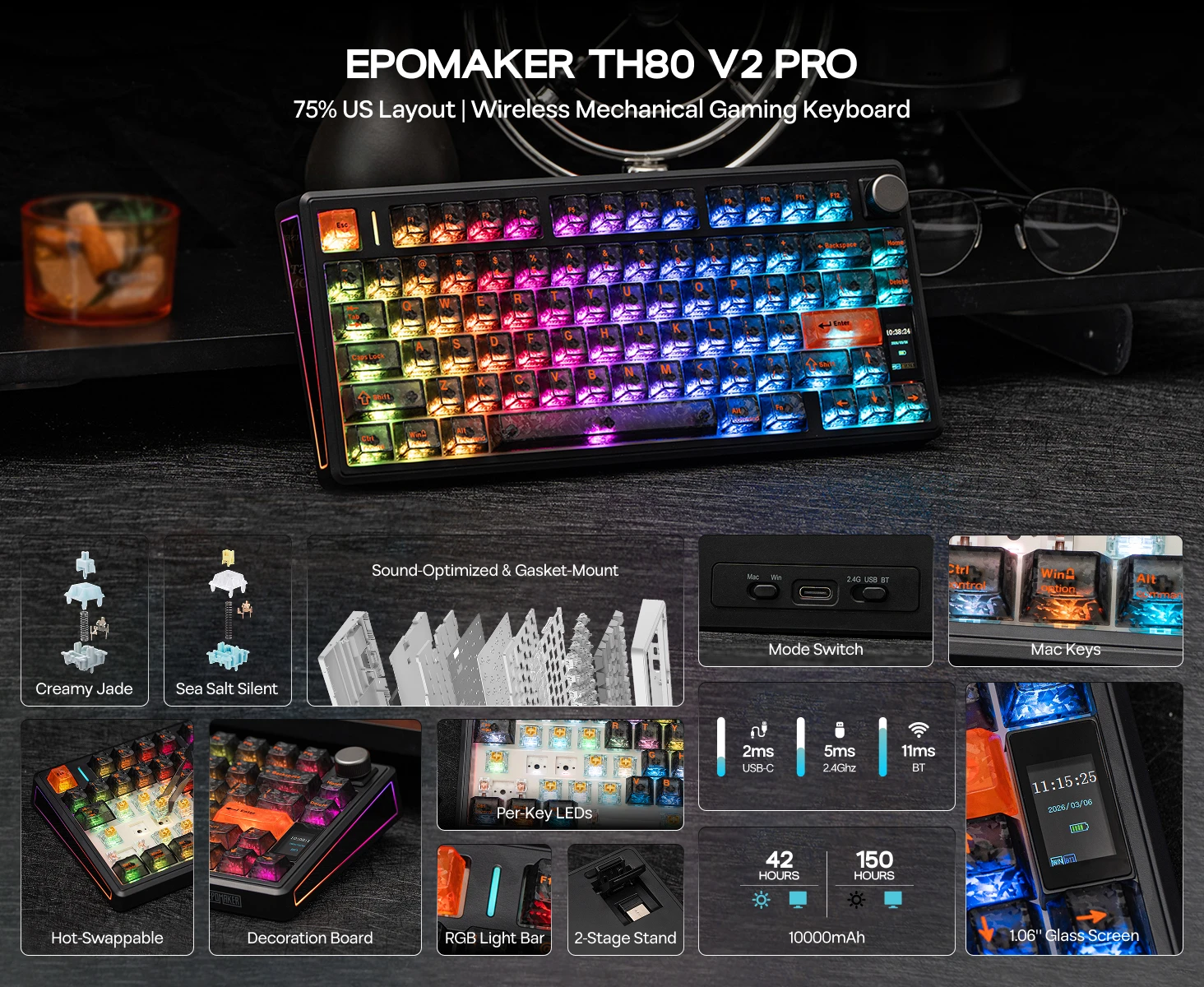

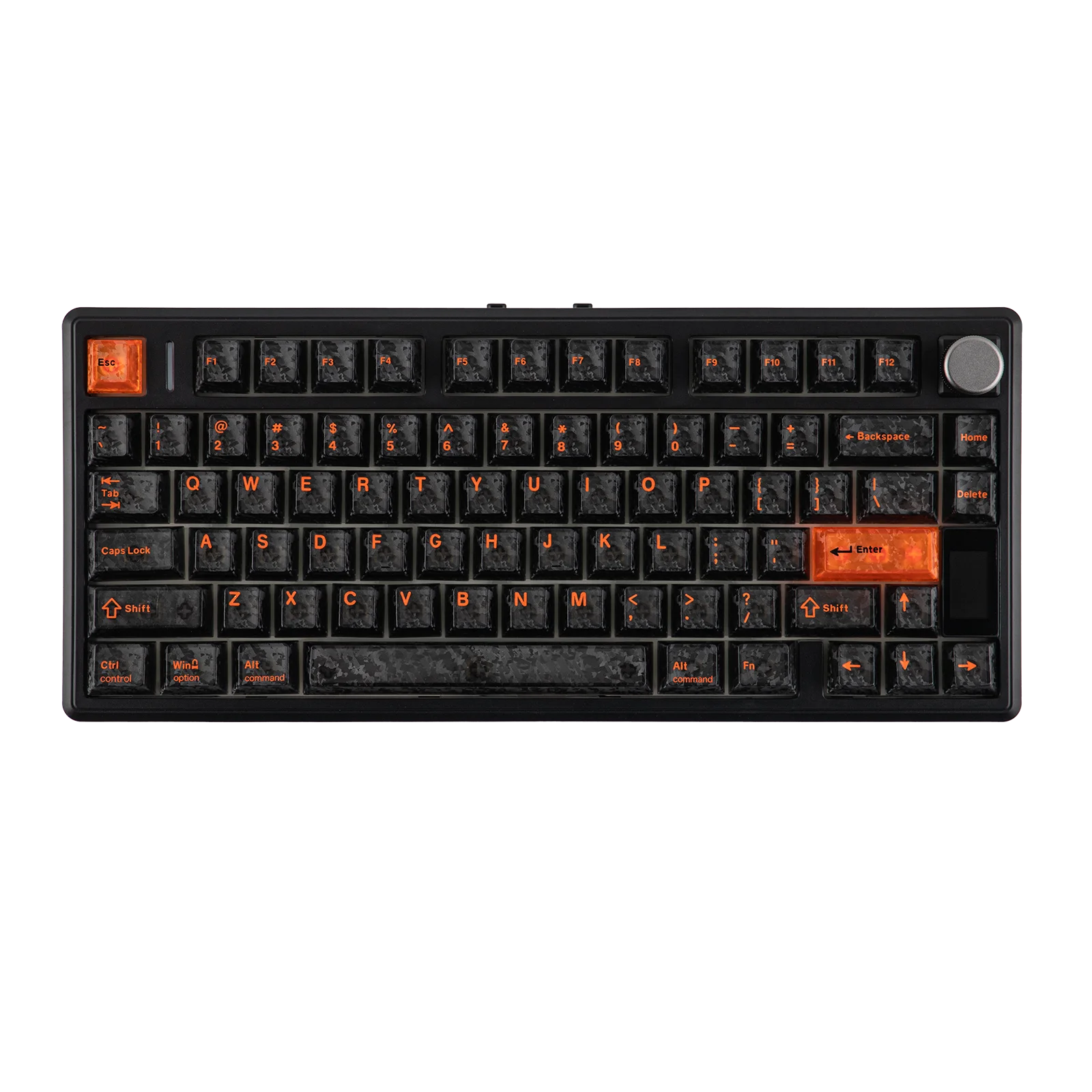

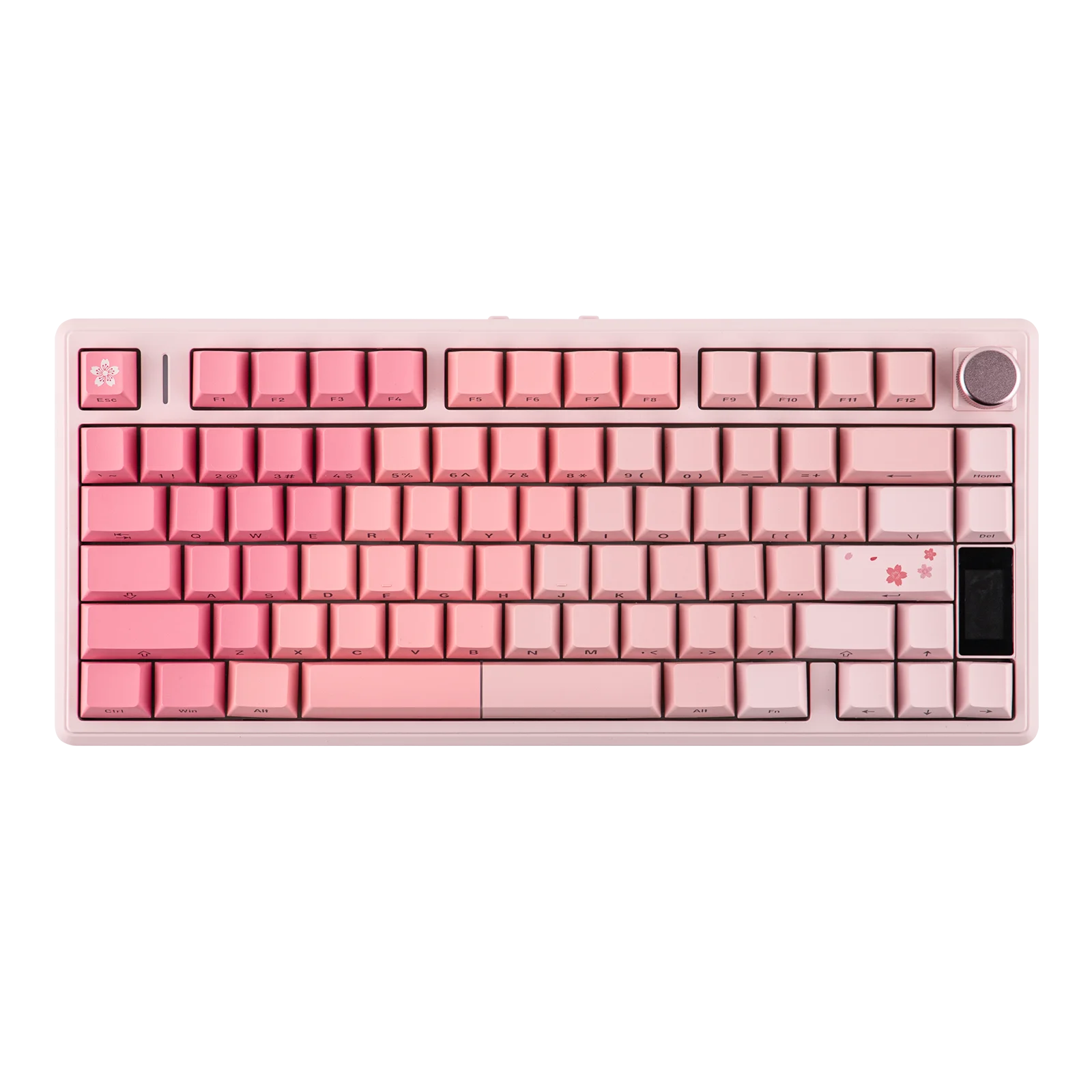

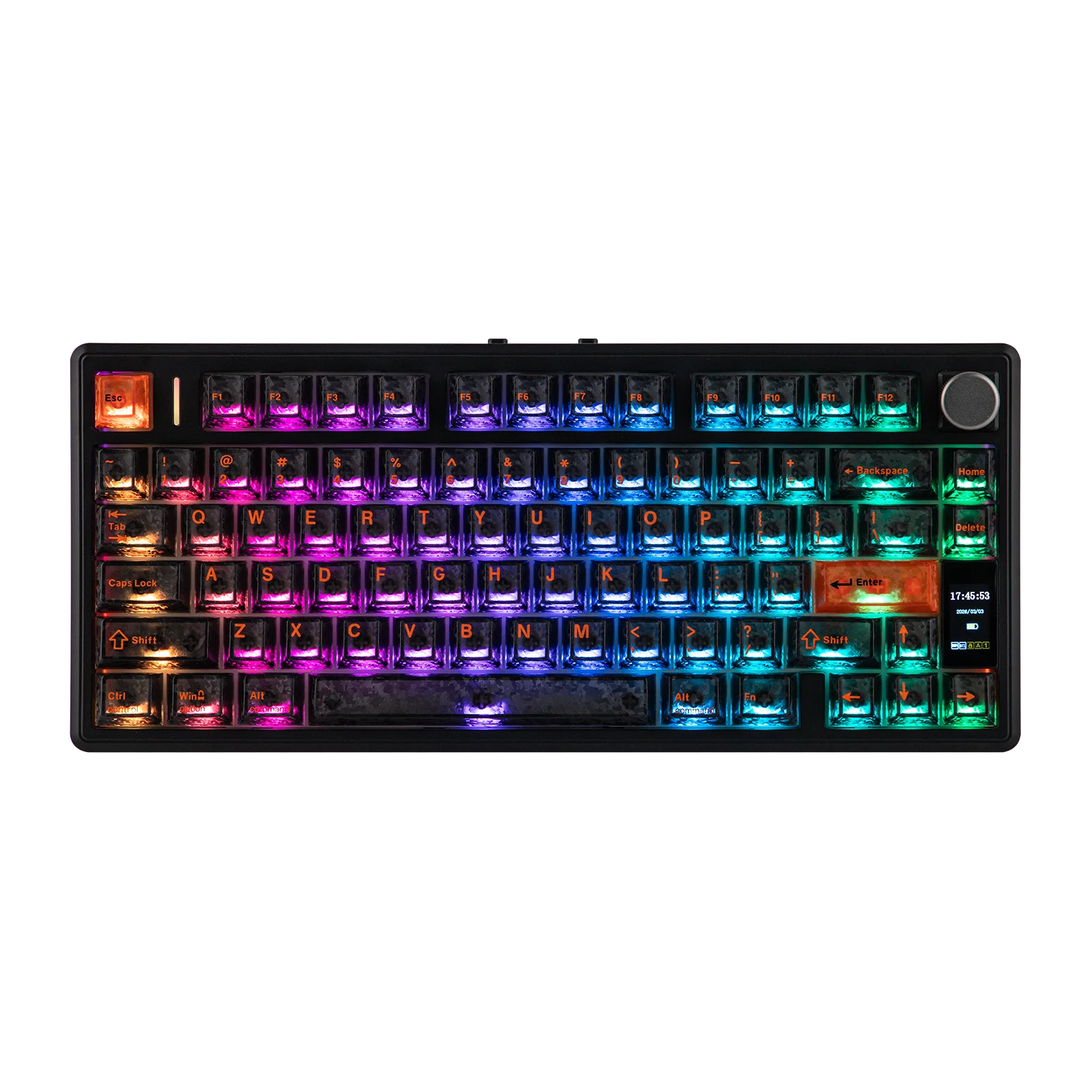

EPOMAKER TH80 V2 PRO 75% ANSI US Layout Wired/Bluetooth/2.4Ghz Wireless Mechanical Gaming Keyboard with Screen/ Knob & 10000mAh

The TH80 V2 PRO enhances your workflow with its cushioned Gasket structure and compact 75% layout. Its interactive LCD screen pairs with the knob for intuitive control over settings and GIFs. Backed by a massive 10,000mAh battery and web-based customization, it offers a seamless, personalized, and long-lasting typing experience.

Immerse yourself in acoustic bliss. Where infinite power meets visual expression, the TH80 V2 PRO transforms every keystroke into a rhythmic symphony of personalized style.

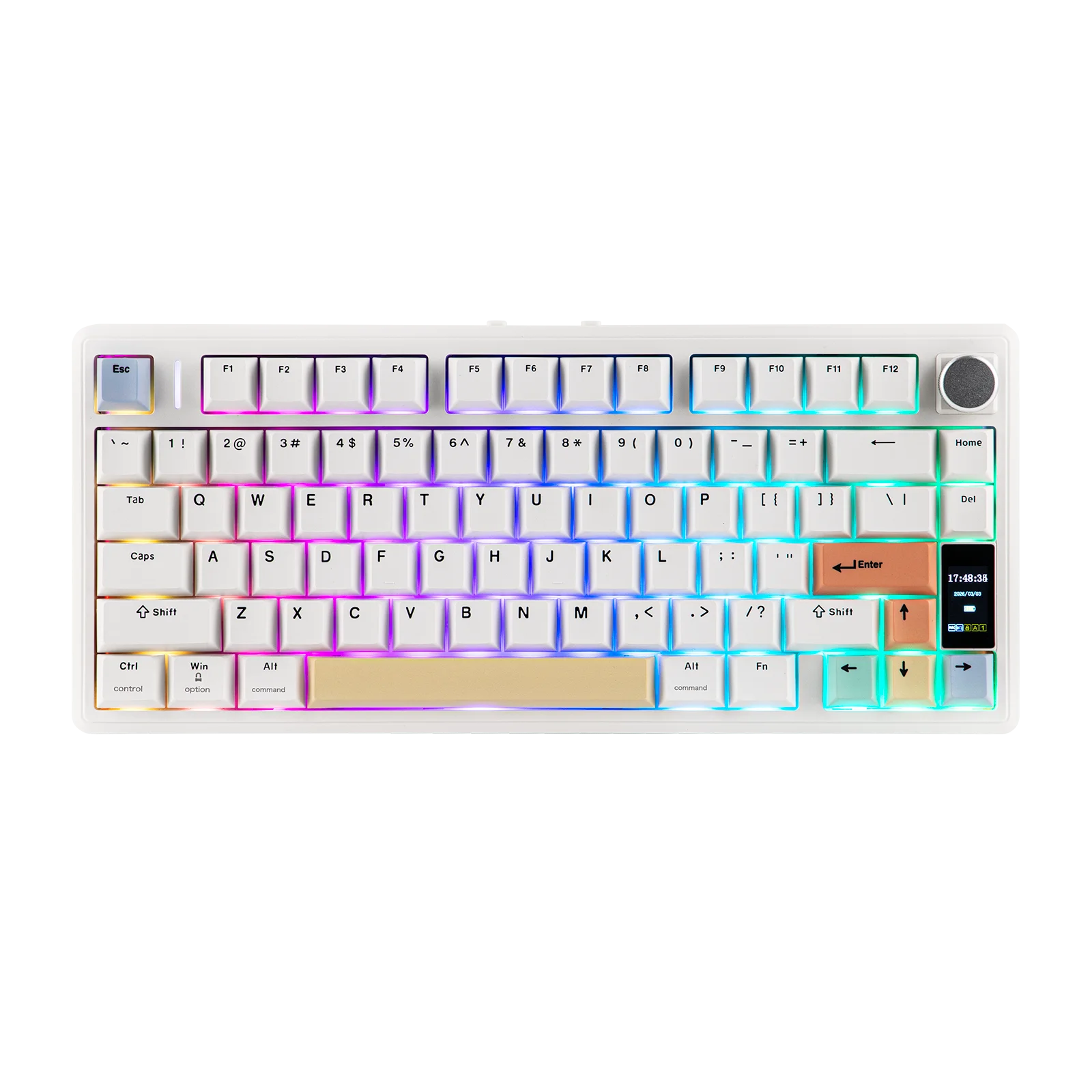

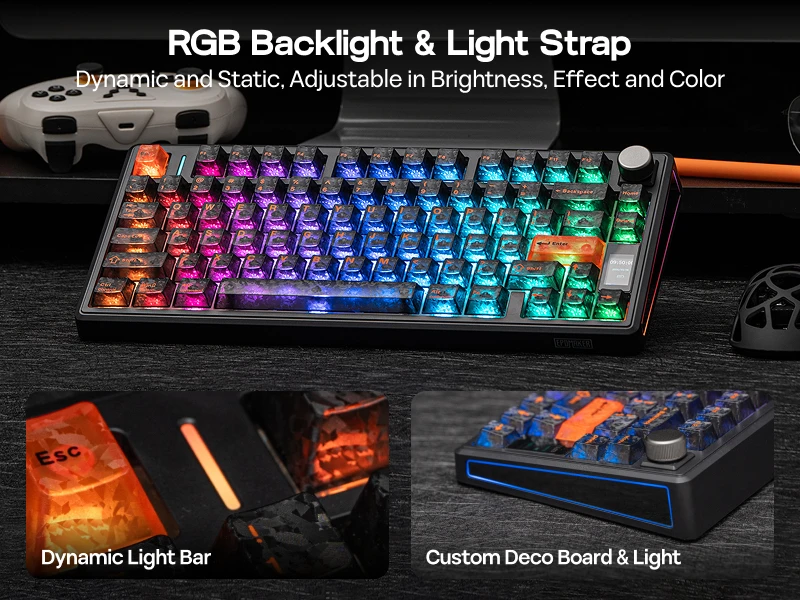

-Dynamic RGB Backlighting & Ambient Side Lighting

-Compact 75% Layout with Interactive LCD Screen & Knob

-Massive 10,000mAh Battery for Extended Wireless Endurance

-Fully compatible with the Epomaker Online Driver

-Versatile Tri-Mode Connectivity

Compact Size, Powerful Core

Weights over 1kg, the TH80 V2 PRO keyboard is durable and sturdy with thick plastic shell, 78 keys with per-key RGB LEDs, a metal volume knob and a glass screen. The concentrated 75% layout frees up desk space for easy mouse movement, yet fits the 10000mAh big battery for 200+ hours of usage wirelessly, and supports play-and-charge with detachable USB A-to-C cable for continuous use. The PBT keycaps, grease resistant for everlasting clean looks and include mac modifier prints, comes in ergonomic cherry profile, which, together with adjustable kickstand and cushioned gasket-mount, keeps your wrist stress-free for all-nighters or long day of work.

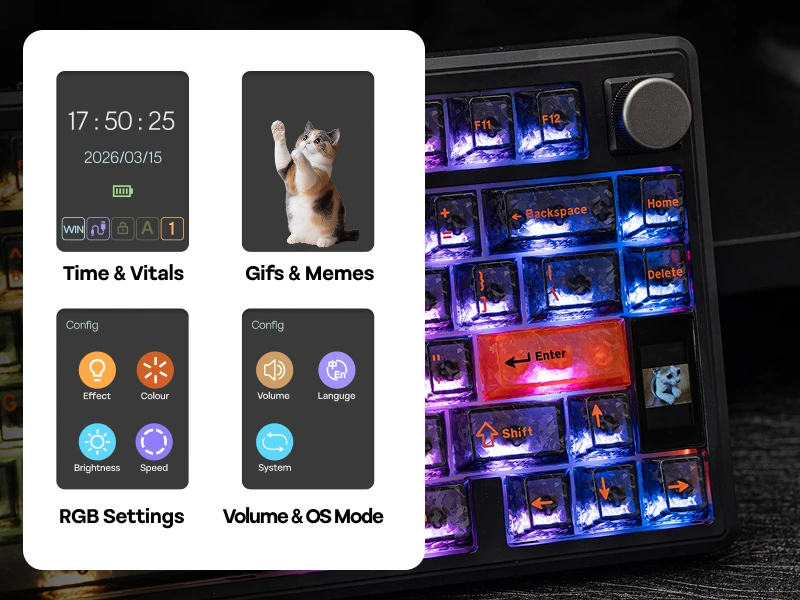

1.06-inch Glass Screen

Intuitively displaying time, battery percentage and keyboard status, the Gif-showing screen of TH80 V2 PRO mechanical keyboard serves as functional smart watch for mid-task checks without interrupting your task at hand. Use FN+Knob to toggle the volume knob for screen control, for intuitive RGB custom in brightness, colour, speed or effect type. Beyond utility, upload GIFs with the web software of TH80 V2 PRO custom keyboard, to showcase your likes and your beliefs with the TH80 V2 PRO RGB keyboard as the eye-catching center piece on your desk.

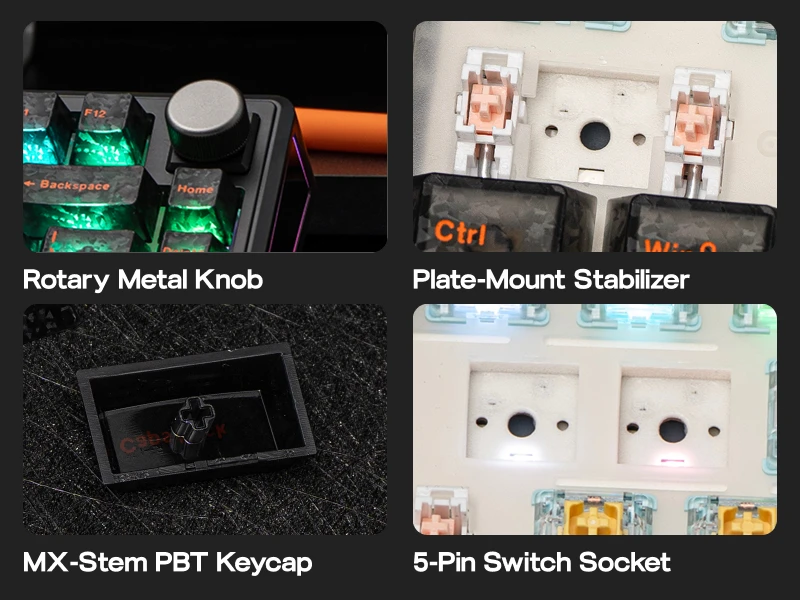

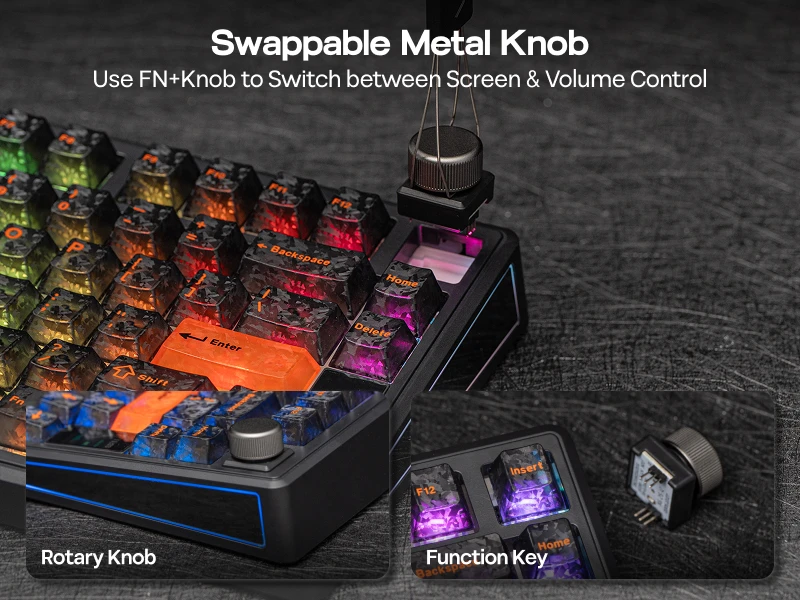

Hot-Swap Knob & Keys

Engineered for total modularity, the TH80 V2 PRO hot-swappable keyboard offers easy switch swap and knob module custom. Compatible with 3/5-pin mechanical switches, this custom keyboard can be transformed from quiet office tool to crisp gaming weapon with tactile feedback in seconds. The versatile knob controls system volume or the glass screen, while fully customizable, swappable for a standard key for streamlined layout and programmable for complex features such as jumping through playlist or trigger personalized macros.

Custom Switch, Creamy Board

Enjoy our TH80 V2 PRO creamy keyboard that packs the custom-tailored typing right out of box. Its crafted sound-optimizing structure includes noise-cancelling layers in PORON, IXPE, EPDM, and silicone that rids the pinning and rattles, and the PET pad heightens the deep, satisfying thock of every keystroke. The soft gasket, separating the inner structure from the hard shell, protects your wrist from harsh shock while the flex-cut plate and PCB offer extra flexibility, delivering the buttering smooth creamy sound. The silent Sea Salt Switch offers the option to go quiet for shard office or living space, without sacrificing the rich and consistent typing feel.

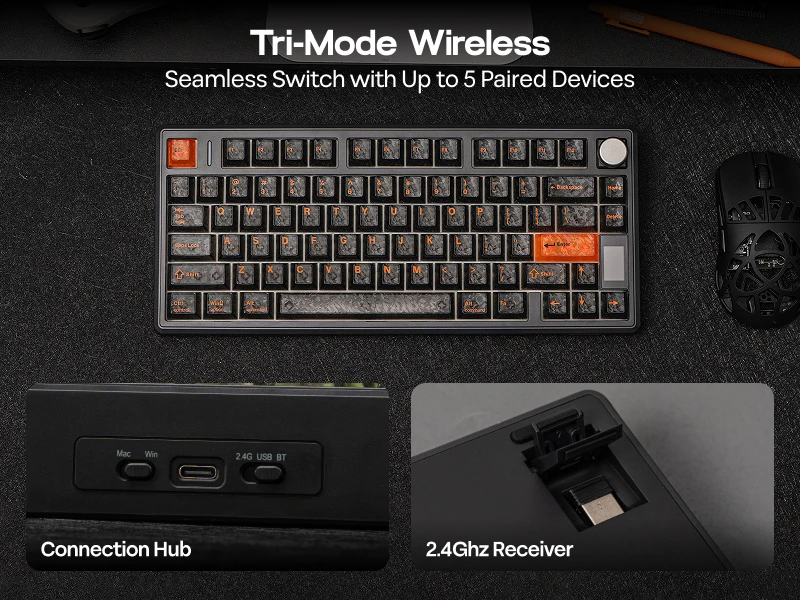

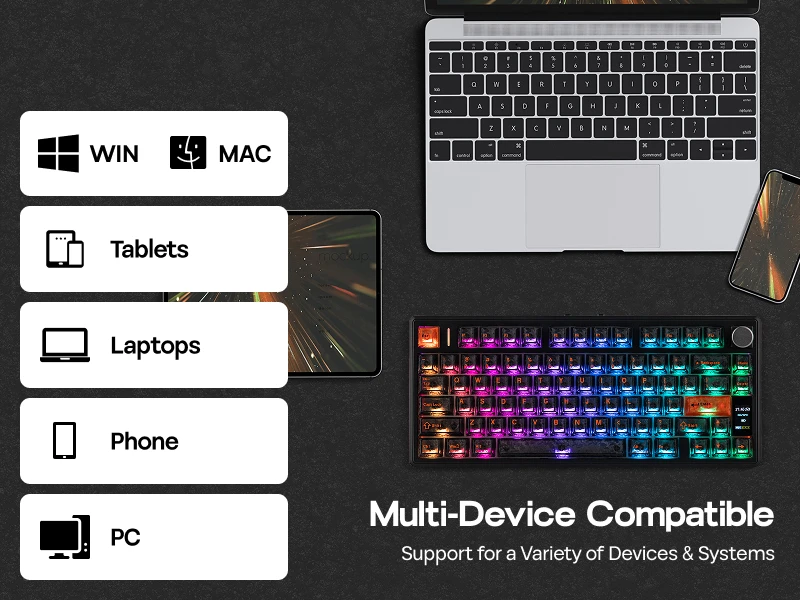

Tri-Mode Gaming Keyboard

Experience seamless versatility across your PC, tablet, and phone with our TH80 V2 PRO wireless keyboard for Mac and WIN users. Custom with the WIN/Mac compatible Chrome-based software that works offline and online, and stay connected in your personalized settings between up to 5 paired devices using 2.4Ghz, BT or cable, as the on-board memory of TH80 V2 PRO remembers your key map and macro settings across devices. Enjoy effortless victories in the digital world, as the TH80 V2 PRO gaming keyboard delivers the split-second precision needed for competitive play, with 2ms low latency and full anti-ghosting at 1k high polling.

Specifications:

Brand: EPOMAKER

Model: TH80 V2 PRO

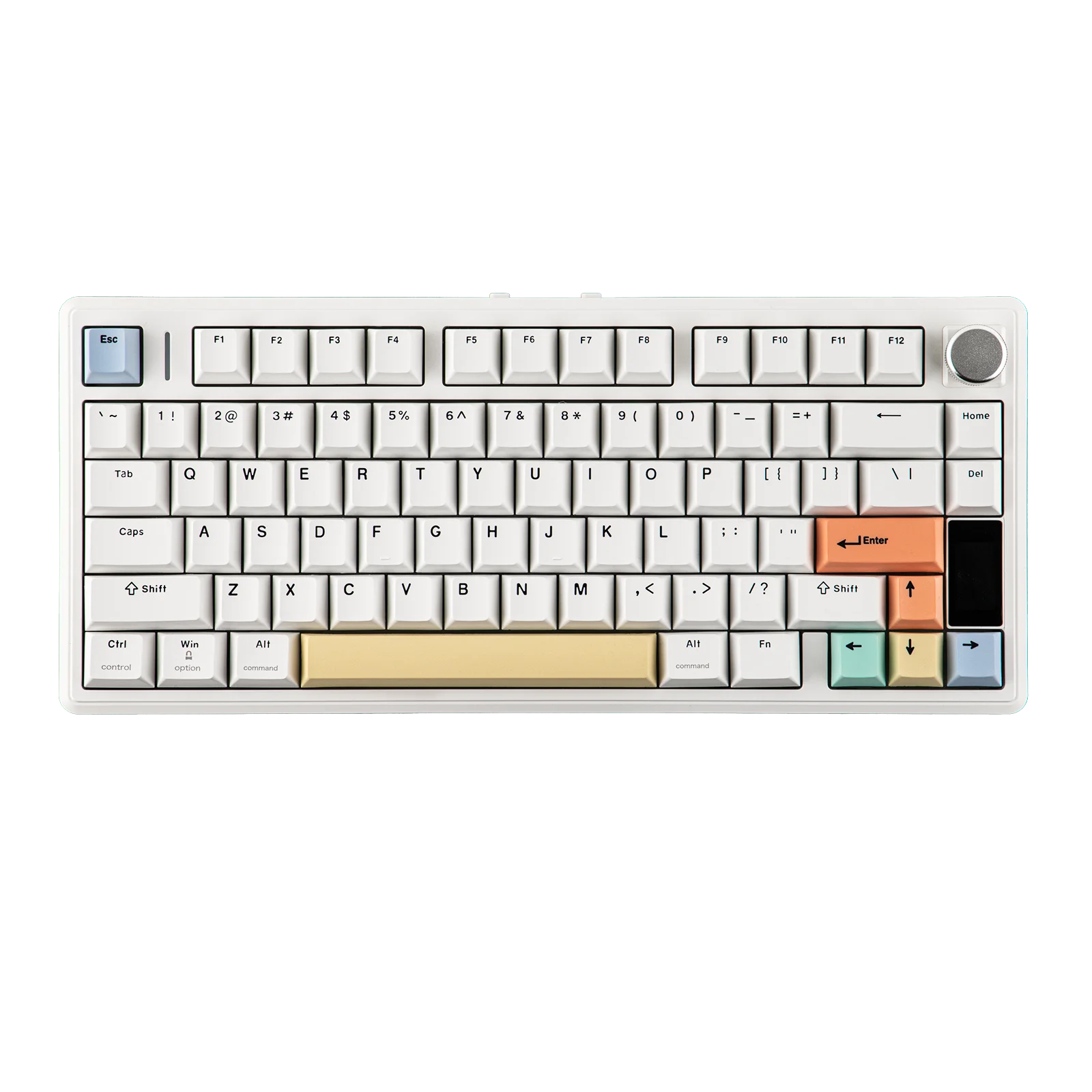

Layout: 75% Keyboard, US ANSI Layout, QWERTY

Number of Keys: 78 Keys, 1 Knob and 1 Screen

Battery: 10000mA

Battery Life

Connectivity: 2.4Ghz/BT/Wired

Compatibility: Mac/WIN/Android

Mac Modifier Keycaps: Yes, the TH80 V2 PRO has Mac Modifier Keycaps.

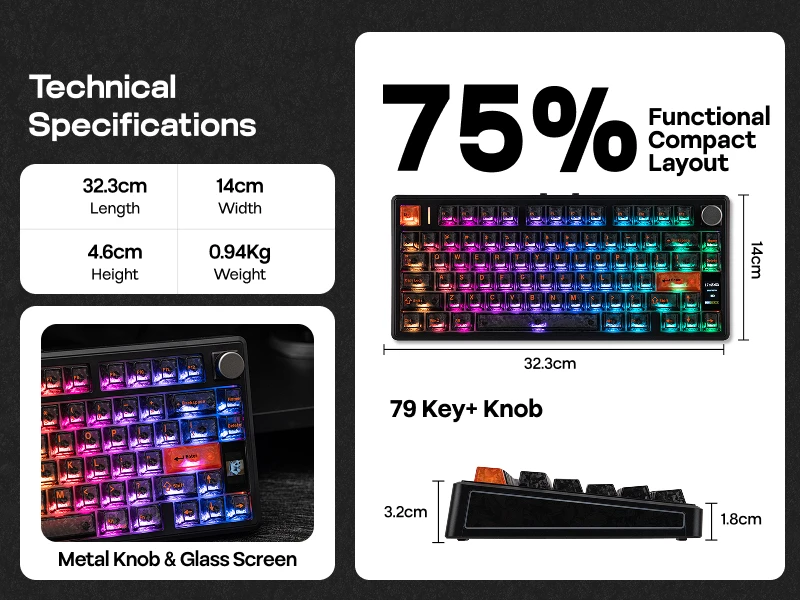

Keyboard Dimensions: 323.37*140.72*46.34mm±1mm

Keyboard Weight: 941g

Front Height: 18.5mm

Back Height: 32.5mm

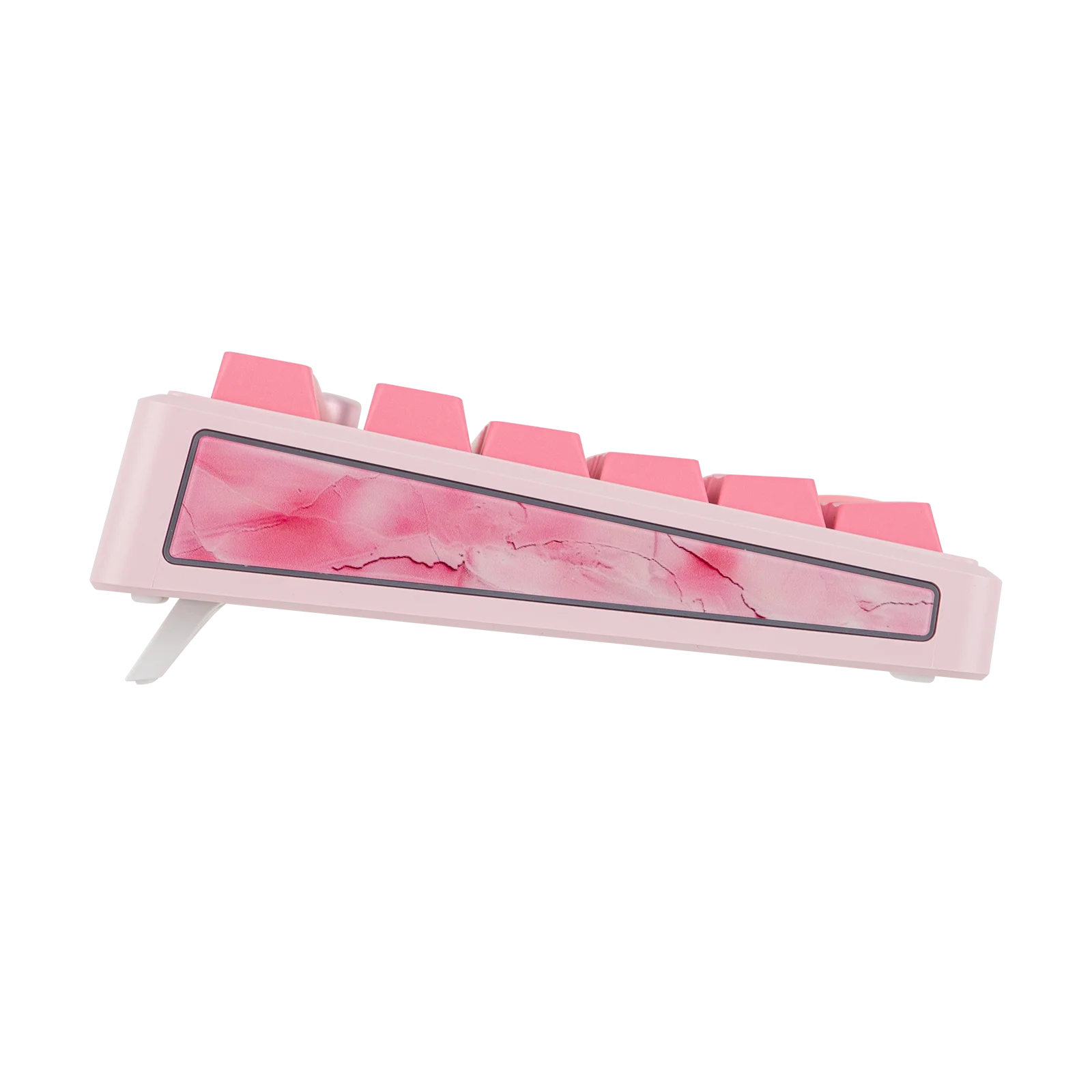

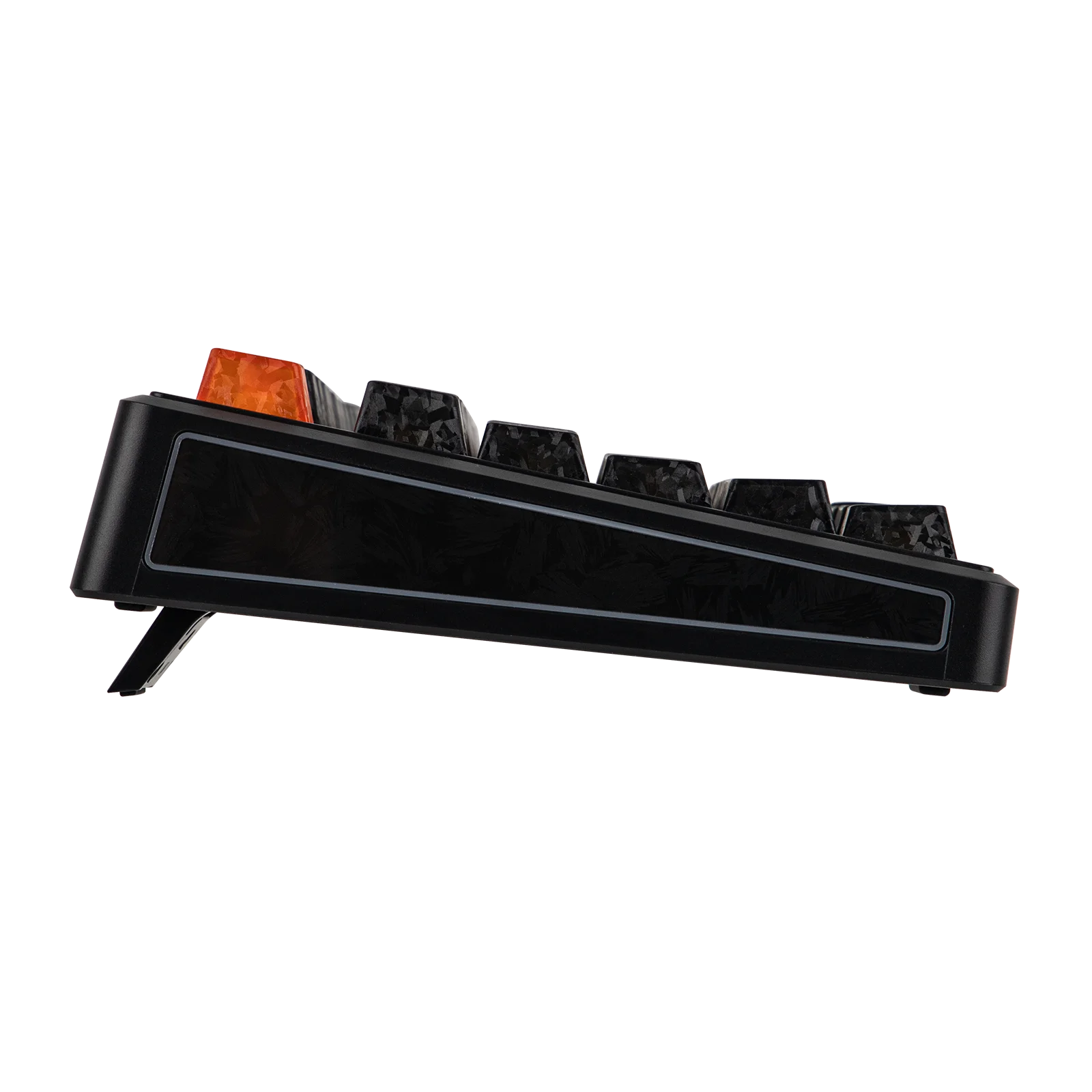

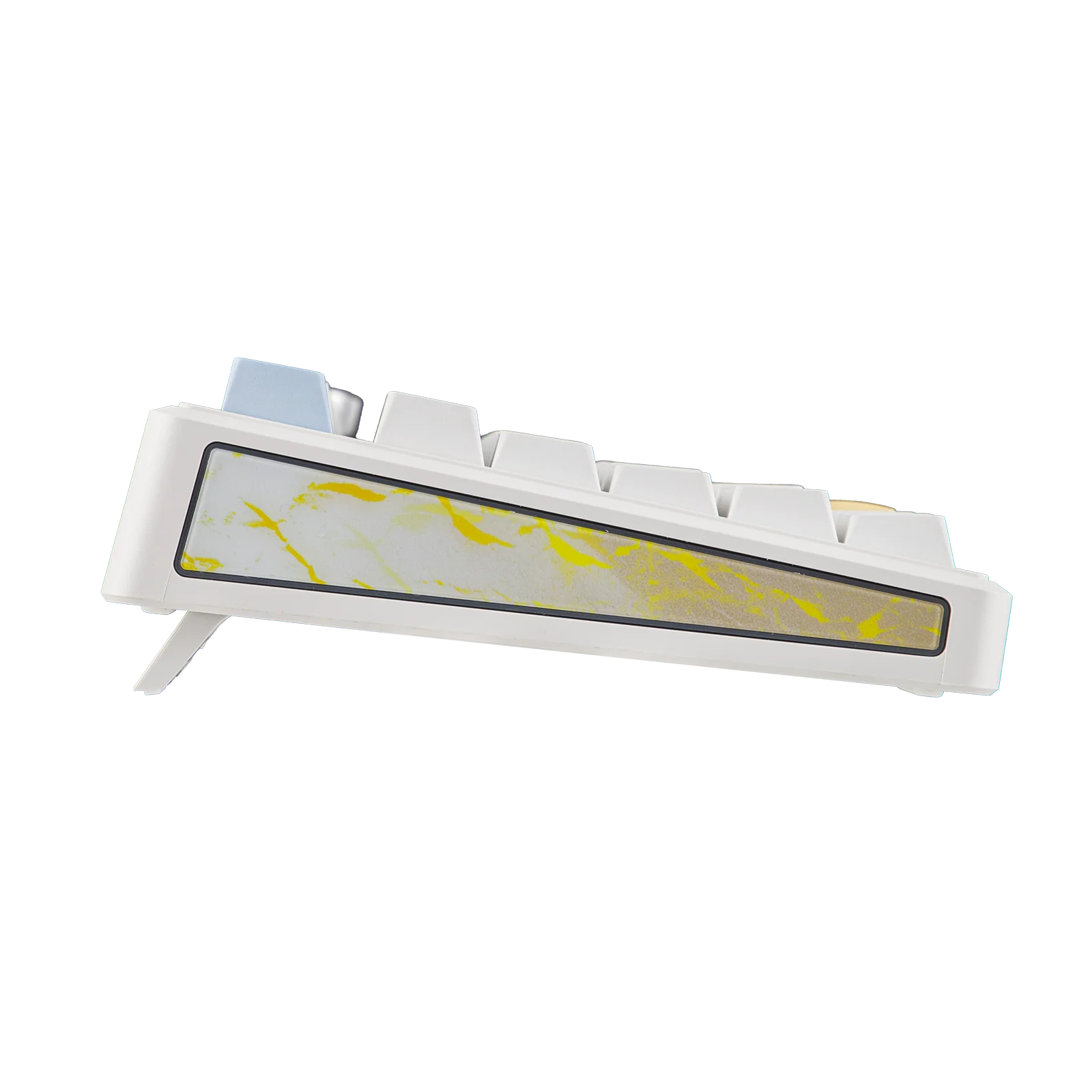

Typing Angle: Three Typing Angles at 6, 8 and 10.5 Degrees, with 2-Stage Adjustable Kickstand.

Case Material: ABS Plastic

Plate Material: PC Plate

Flex-Cut: Yes, the EPOMAKER TH80 V2 PRO has Flex-Cut Plate and PCB

Stabilizers: Plate-Mounted Stabilizer

Mounting Structure: Gasket-Mount

Sound Optimizing: 5-Layer Sound Optimizing Structure including PORON Sandwich Foam, IXPE Switch Pad, Sound Enhancement Pad, EPDM Switch Socket Pad and Bottom Silicone

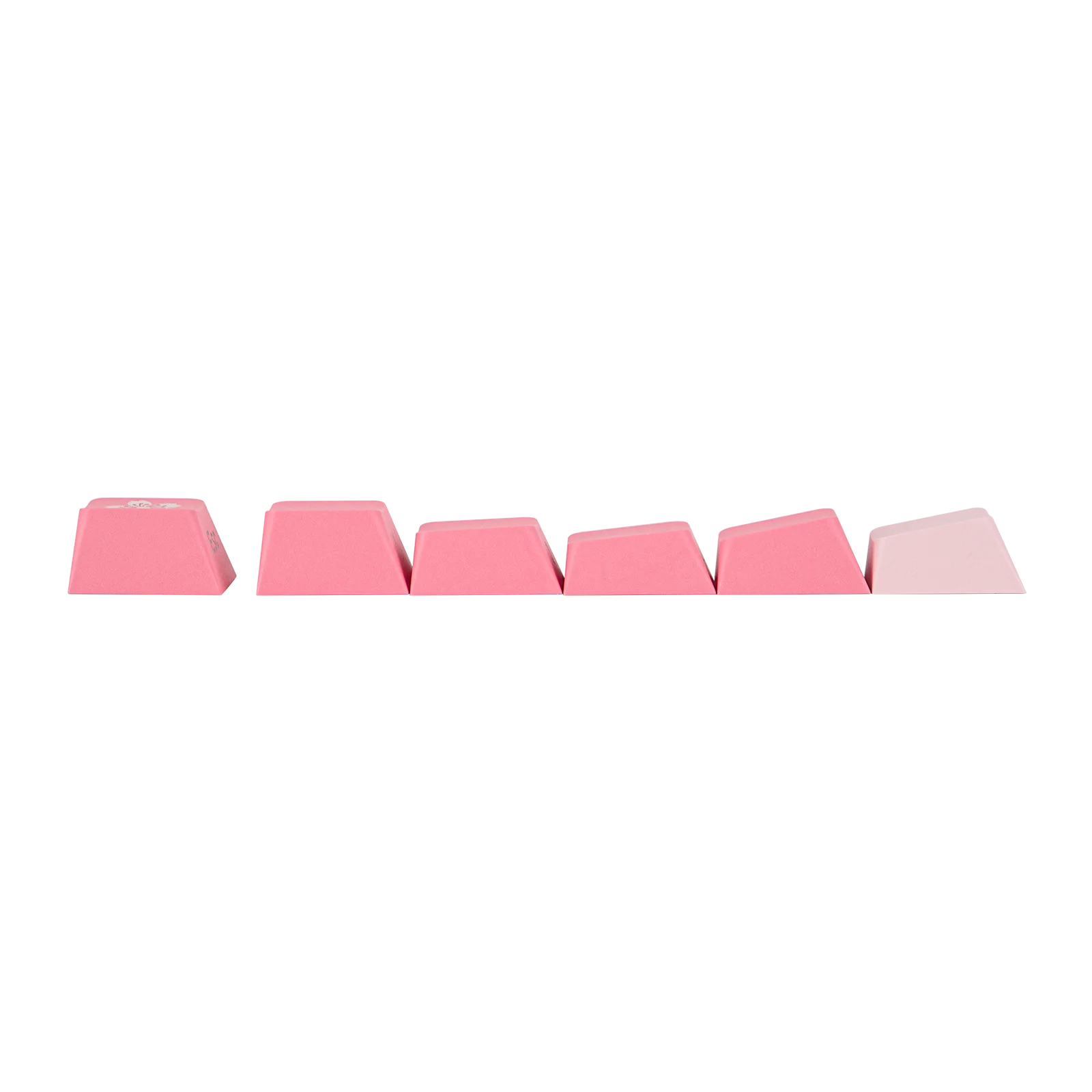

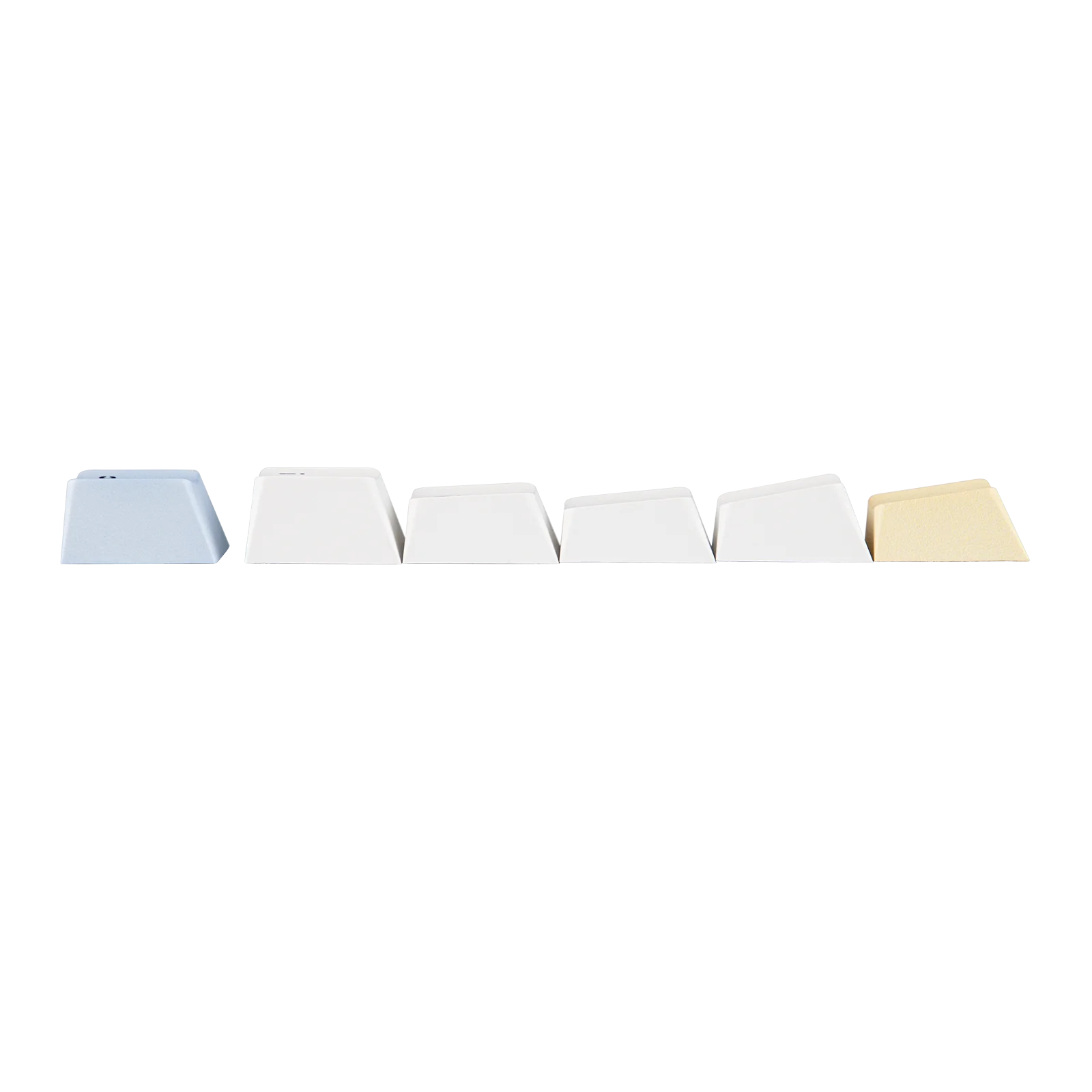

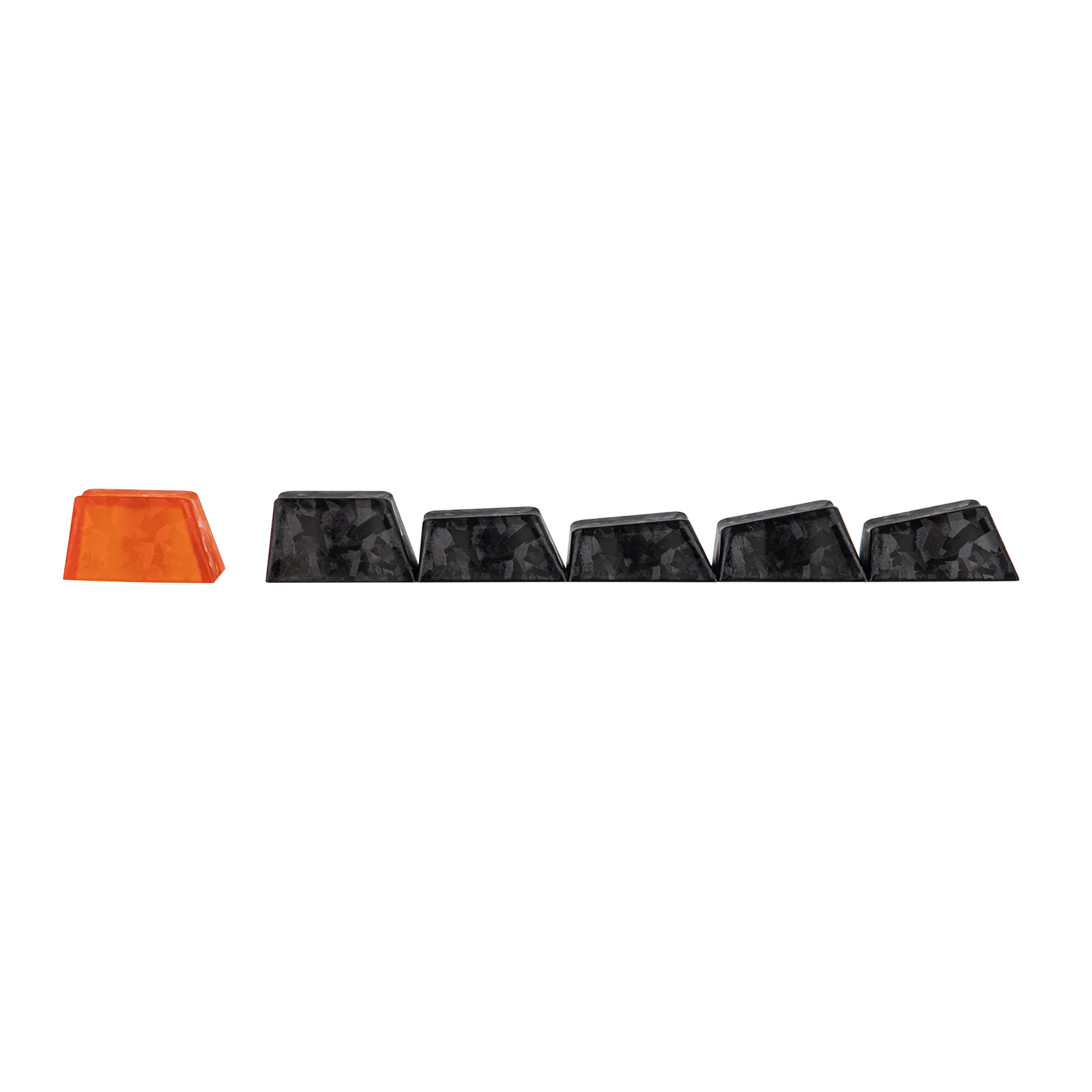

Keycaps Profile: Cherry Profile

Keycaps Material: PBT Keycap

Keycaps Manufacturing Technique: Double Shot

Switch: Factory Lubed Mechanical Switch

Hot Swappable: Yes, the EPOMAKER TH80 V2 PRO Keyboard is Hot-Swappable.

RGB: Yes, the EPOMAKER TH80 V2 PRO Keyboard has RGB Backlight with per-Key Adjustable South-Facing LEDs.

Polling Rate: 1000hz (Wired/2.4G) or 125hz (BT)

Latency: 2ms (Wired), 5ms (2.4Ghz) or 11ms (BT)

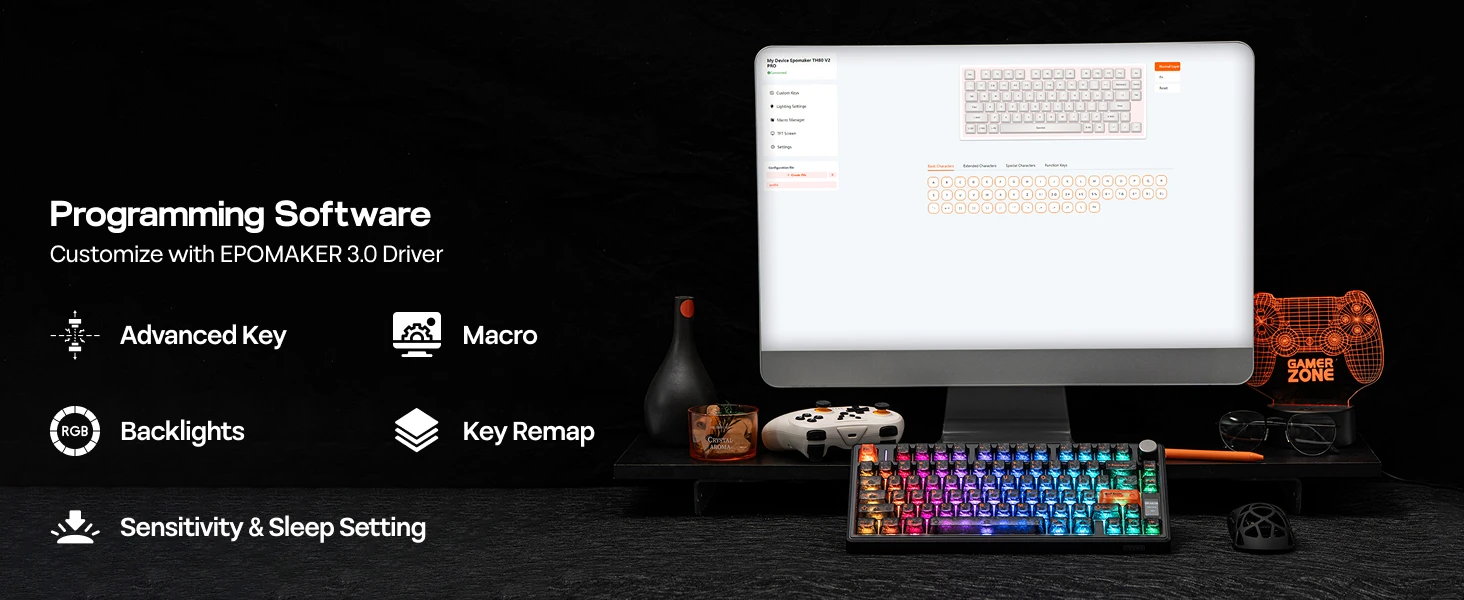

Programming Software: Yes, the TH80 V2 PRO Custom Keyboard has Web-Based Software available on Mac and WIN system, online or offline, using Chrome-Based Browser such as Chrome or Edge.

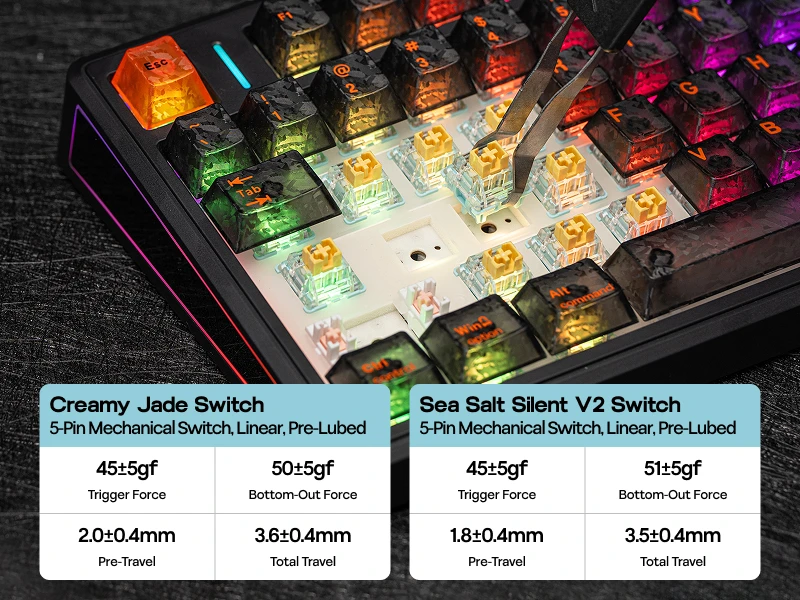

Specifications for EPOMAKER Creamy Jade Switch:

Switch Type: 5-pin Mechanical Switch, Linear, Pre-Lubed

Trigger Force: 45±5gf

Bottom-out Force: 50±5gf

Pre-Travel: 2.0±0.4mm

Total Travel: 3.6±0.4mm

Light Diffuser: No Light Diffuser

Specifications for EPOMAKER Sea Salt Silent V2 Switch:

Switch Type: 5-pin Mechanical Switch, Silent, Linear, Pre-Lubed

Trigger Force: 45±5gf

Bottom-out Force: 51±5gf

Pre-Travel: 1.8±0.4mm

Total Travel: 3.5±0.4mm

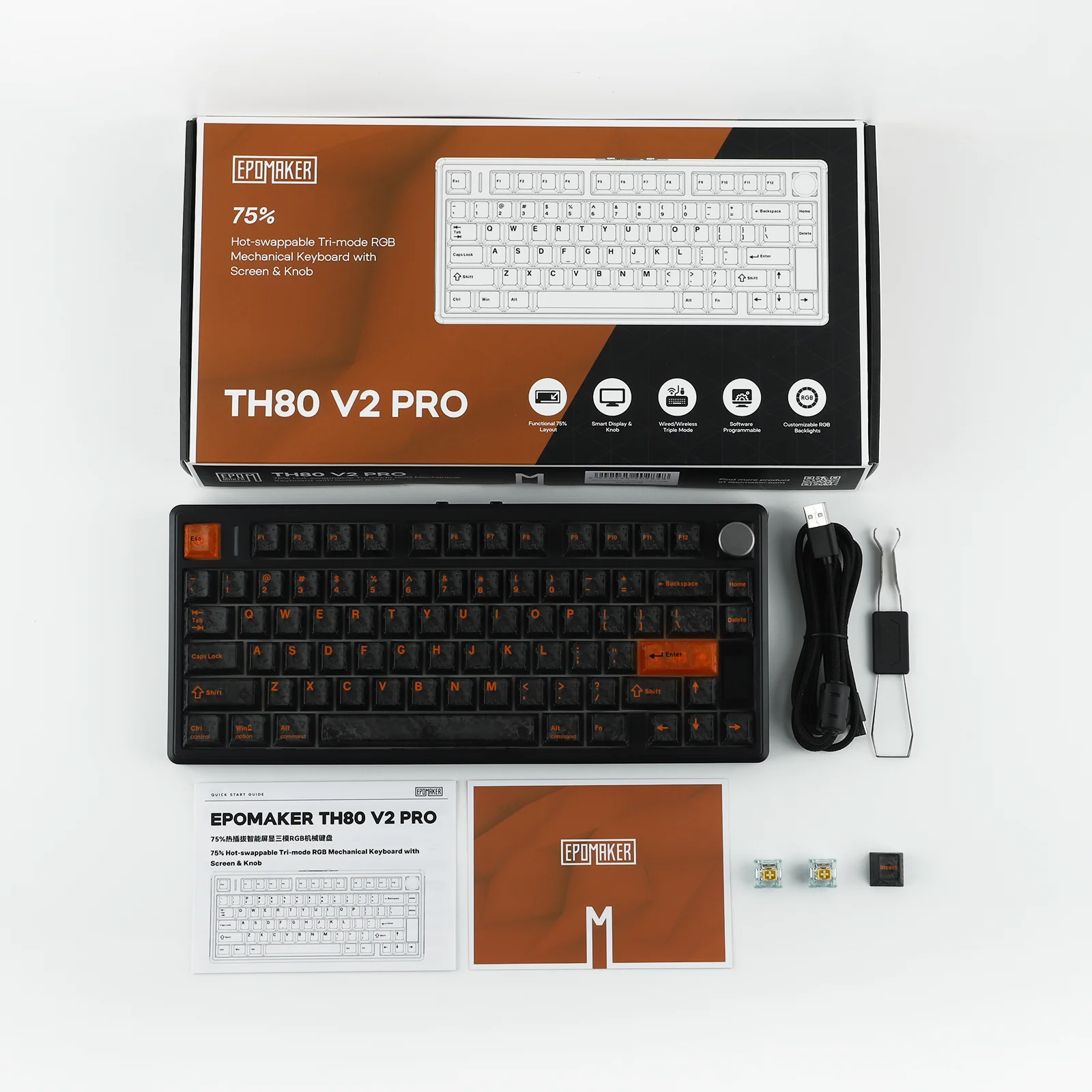

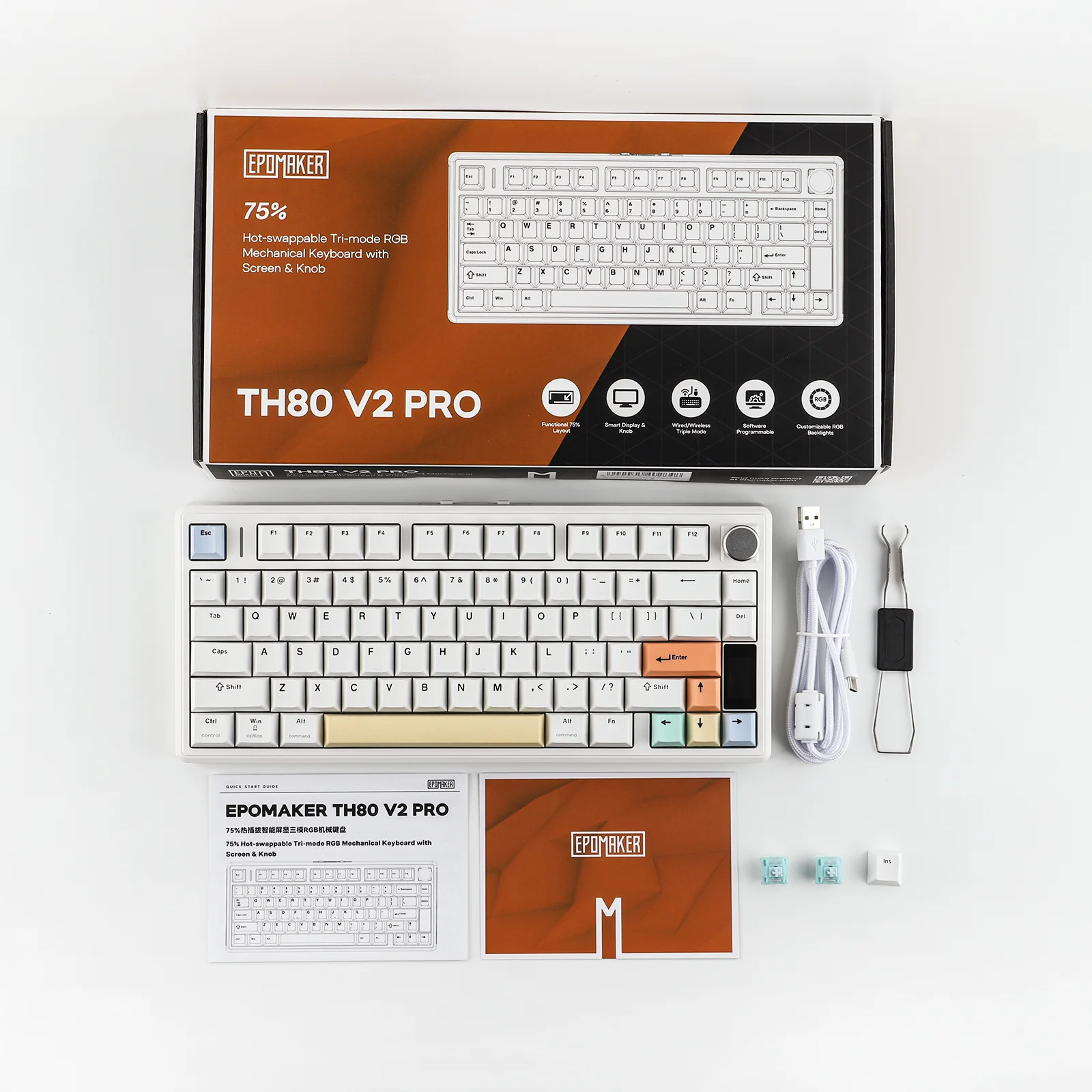

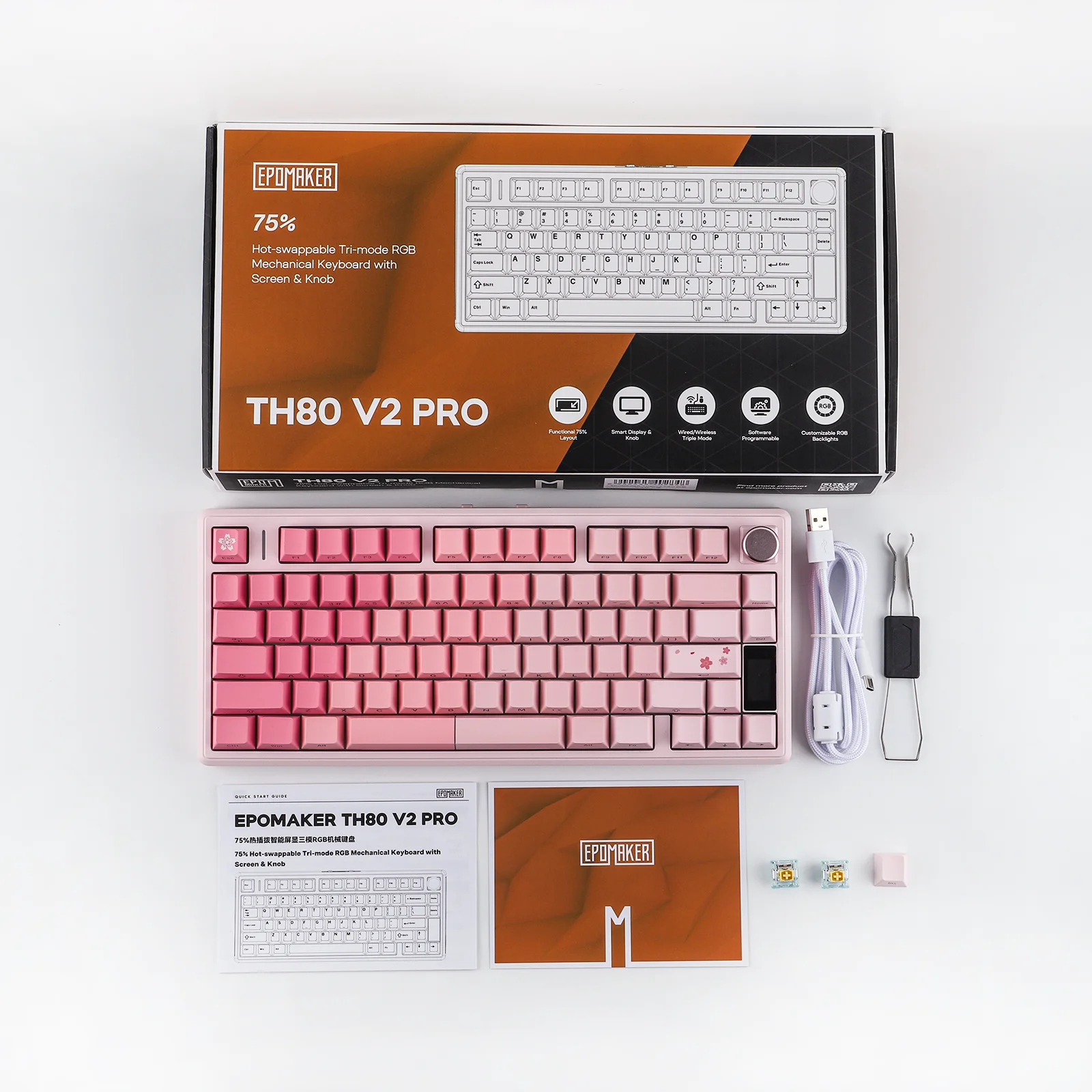

Package Content:

The EPOMAKER TH80 V2 PRO Wireless Gaming Keyboard with Screen

The 2-in-1 Keycap-and-Switch Puller, Extra Switch and Keycap

The 2.4Ghz Wireless Receiver (Stored under Kickstand) and a Detachable USB A-to-C Cable

The Summarized Manual and the Product Card
